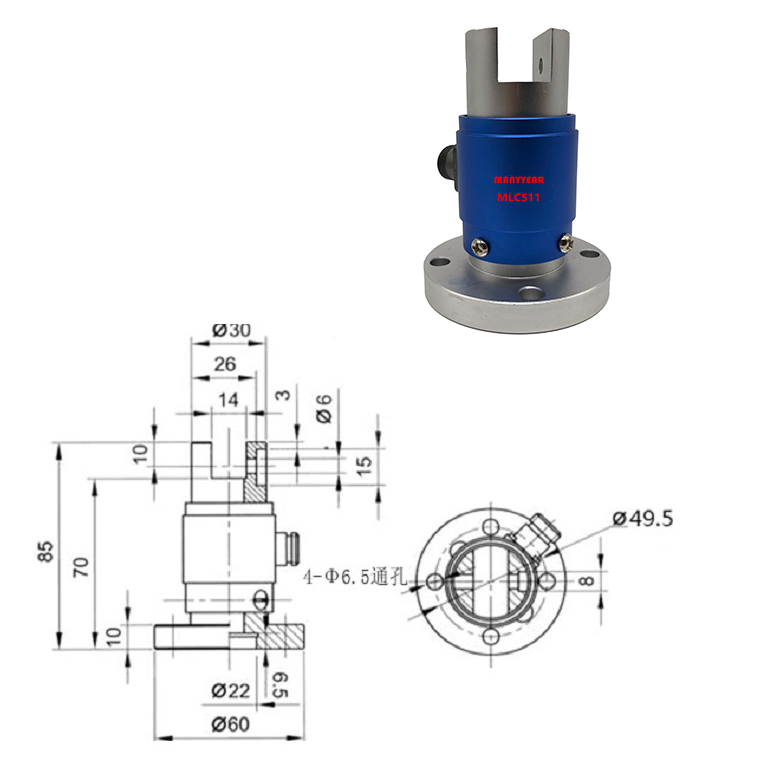

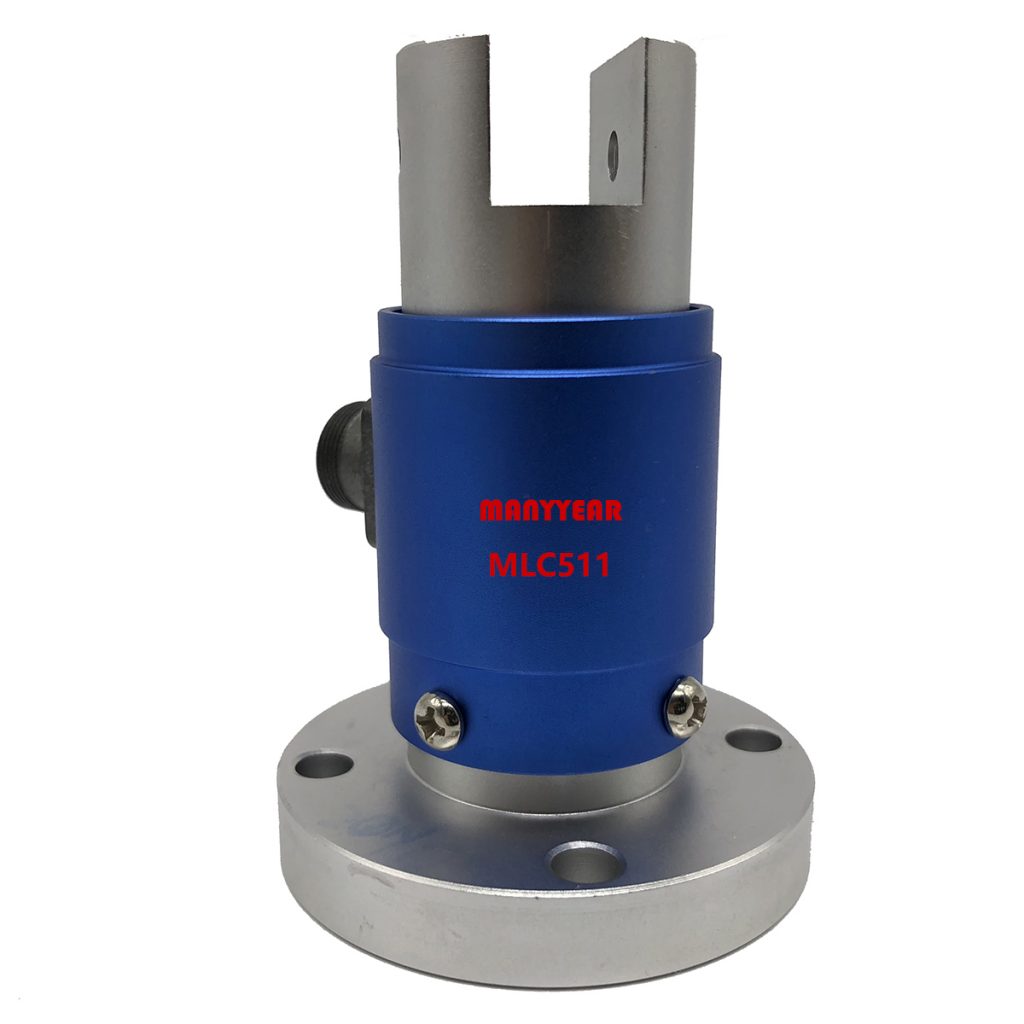

MLC511 静态扭矩传感器| 型号： MLC511 类别： Torque Sensr 量程： 0.5,1,2,,5,10,20,30,50,100Nm 尺寸： D49.5*85mm 材质： 合金钢 应用: Static torque 测量, 马达torque, engine torque, combustion engine torque, fan torque, viscometer , the pump torque, 变速箱torque, torque wrench | | 扭矩传感器 is the precision measuring instruments to measure torque,revolving speed and the power of the mechanical. Product characteristics Resistance strain for sensitive components and integrated circuit consisting of integrated products, high precision, stable and reliable performance, wide measuring range. Static torque 测量, both ends are key links, easy installation and use. application 1、Rotating power equipment such as motor, engine, engine output torque and power of detection; 2、Fan, water pump, gear box, torque wrench, torque and power of detection; 3、Railway locomotive, automobile, tractor, airplane, ship, mining machinery, the torque and power of detection; 4、Can be used in the 污水处理系统 in torque and power of detection; 5、Can be used in the manufacture of viscometer; 6、Can be used in the laboratory, test department, in the process industry and process industry production monitoring and quality control; | | | 技术参数： | | 量程： | 0.5,1,2,,5,10,20,30,50,100Nm | 频率： | 100μS | | 额定输出： | 1.5±10% mV / V | 绝缘电阻： | ≥5000MΩ/ 100VDC | | 零点输出： | ±1% F.S. | 工作电压： | 10VDC(9-15VDC) | | 非线性： | ±0.1，0.3% F.S. | 补偿温度： | -10 ~ 60℃ | | 迟滞： | ≤±0.05% F.S. | 工作温度： | -20 ~ 65℃ | | 重复性： | ≤±0.05% F.S | 安全过载： | 150% F.S. | | 蠕变： | ≤±0.03% F.S/30min | 极限过载： | 200% F.S. | | 灵敏度温度影响. | 0.03% F.S. / 10℃ | 线材： | Ø5.2×3m | | 零点温度影响： | 0.03% F.S. / 10℃ | 电子连接： | 红/E+，黑/E-，绿/S+，白/S- | | 输入电阻： | 350,750±10Ω | 材质： | 铝合金，不锈钢 or 合金钢 | | 输出电阻： | 350,700±5Ω | 其它 | 定制（根据客户的需求） |
|
