MLC5100SF3 3-Axis Force Sensor
X-Axis Fx: 5-500kg
Y-Axis Fy: 5--500kg
Z-Axis Fz: 10-1000kg
Dimension: 100*100*16mm
Y-Axis Fy: 5--500kg
Z-Axis Fz: 10-1000kg
Dimension: 100*100*16mm

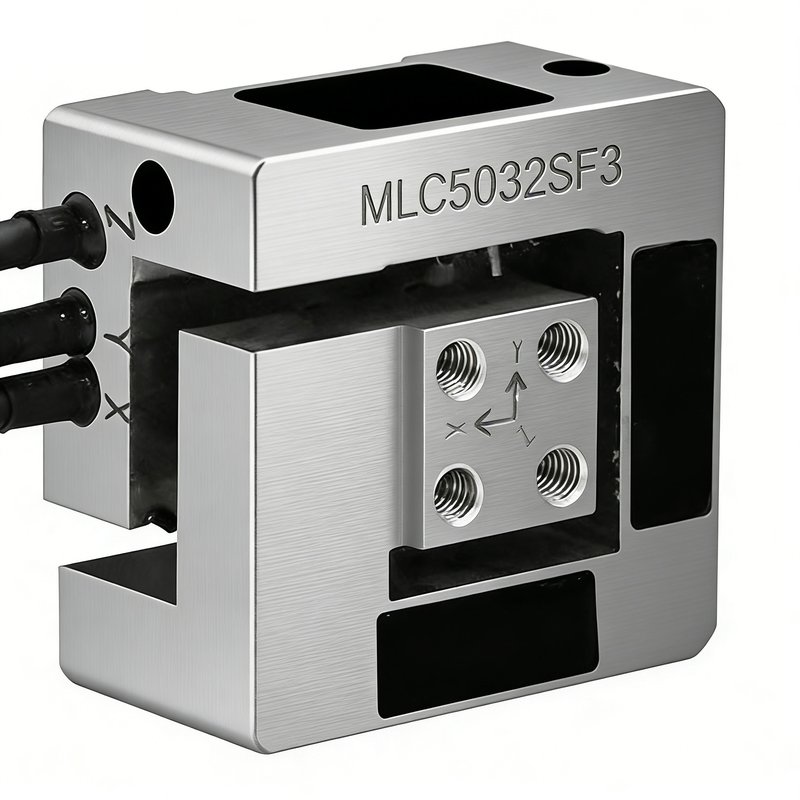

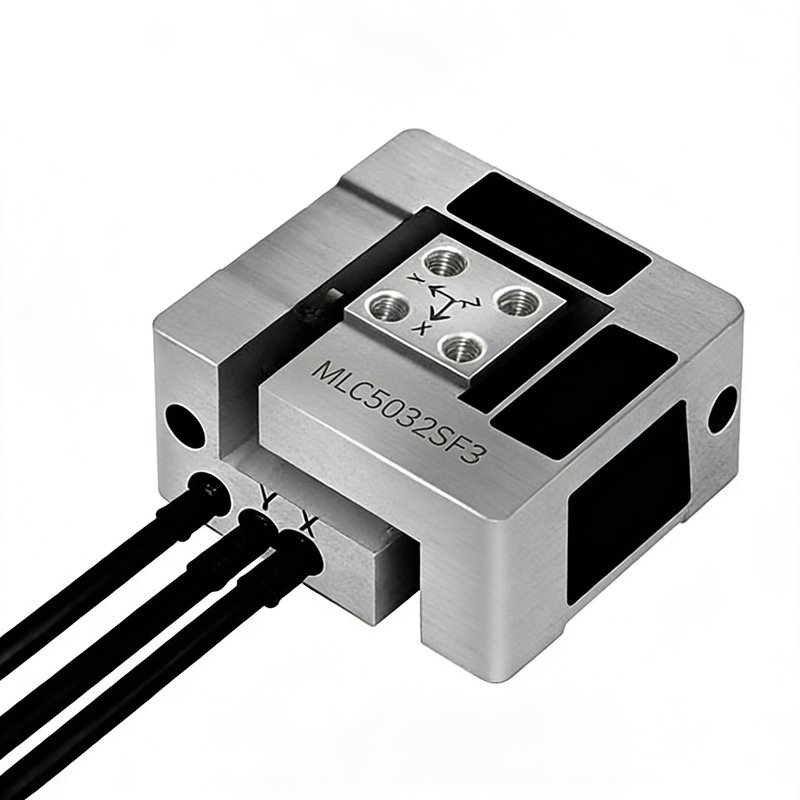

MLC5032SF3 3-Axis Force Sensor
Product Introduction
Model: MLC5032SF3
Category: Multi-Axis Force Sensor
X-Axis Fx: 0-50N
Y-Axis Fy: 0-50N
Z-Axis Fz: 0-100N

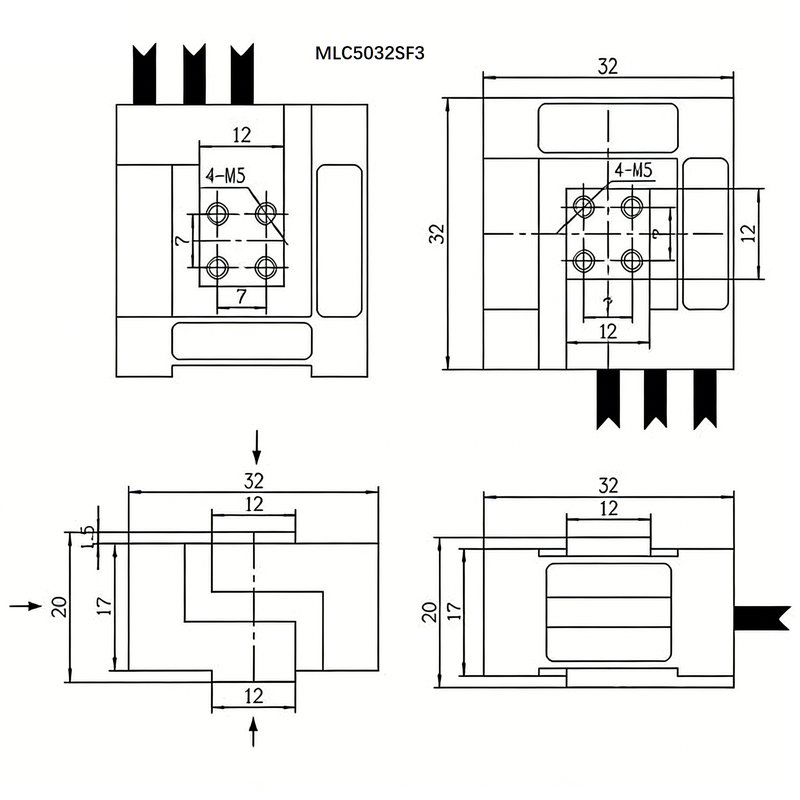

Dimension: 32*32*20mm
Material: Aluminum Alloy, Alloy Steel, Stainless Steel
Application: 3-Axis Force Sensor, Robot Multi-Axis Force Sensor, Robotic Arm Multi-Axis Force Sensor, Vehicle Testing Multi-Axis Force Sensor, CNC Machining Multi-Axis Force Sensor, Smart Assembly Multi-Axis Force Sensor, Auto Welding Multi-Axis Force Sensor, Auto Grinding Multi-Axis Force Sensor, Auto Polishing Multi-Axis Force Sensor, UAV Multi-Axis Force Sensor
Download related documents
Contact immediately
Technical Specifications
MLC5032SF3 3-Axis Force Sensor by ManYear Technology delivers high-precision multi-axis force and torque measurement. Ranges: X-Axis Fx 0-50N, Z-Axis Fz 0-100N. Dimension 32*32*20mm, compact and easy to install. Material: Aluminum Alloy, Alloy Steel, Stainless Steel. Keywords: 3-Axis Force Sensor, Multi-Axis Force Sensor. Ideal for robotic assembly, polishing, grinding, and automated inspection with reliable 3-Axis-axis force measurement.
